5 Ways To Master Pivot Tables In Sql

Pivot tables are a powerful tool in data analysis, allowing users to rotate and aggregate data to gain new insights. While pivot tables are commonly associated with spreadsheet software like Microsoft Excel, they can also be used in SQL. Mastering pivot tables in SQL can help database administrators and analysts to efficiently summarize and analyze large datasets. In this article, we will explore five ways to master pivot tables in SQL.

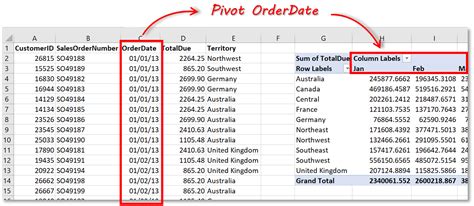

Understanding Pivot Tables in SQL

Before diving into the ways to master pivot tables in SQL, it's essential to understand what pivot tables are and how they work. A pivot table is a data summarization tool that allows users to rotate and aggregate data from a table. In SQL, pivot tables are created using the PIVOT keyword, which rotates data from rows to columns.

Benefits of Using Pivot Tables in SQL

Pivot tables offer several benefits when used in SQL, including:

• Simplified data analysis: Pivot tables allow users to quickly summarize and analyze large datasets.
• Improved data visualization: Pivot tables can help users to identify trends and patterns in data.
• Increased flexibility: Pivot tables can be used to rotate and aggregate data in various ways.

1. Using the PIVOT Keyword

The PIVOT keyword is used to create a pivot table in SQL. The basic syntax for creating a pivot table using the PIVOT keyword is as follows:

SELECT *
FROM (
  SELECT column1, column2, value
  FROM table_name
) AS source_table
PIVOT (
  SUM(value)
  FOR column2 IN (value1, value2, value3)
) AS pivot_table;

In this example, the PIVOT keyword is used to rotate the data in the column2 column and aggregate the values in the value column.

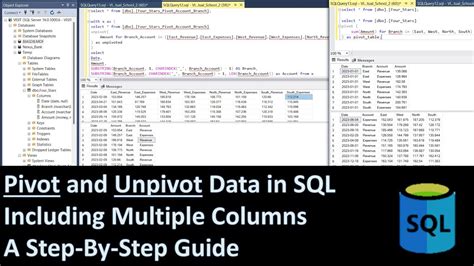

2. Using the UNPIVOT Keyword

The UNPIVOT keyword is used to reverse the pivot operation and transform data from columns back to rows. The basic syntax for creating a pivot table using the UNPIVOT keyword is as follows:

SELECT *
FROM (
  SELECT column1, value1, value2, value3
  FROM table_name
) AS source_table
UNPIVOT (
  value FOR column2 IN (value1, value2, value3)
) AS unpivot_table;

In this example, the UNPIVOT keyword is used to transform the data in the value1, value2, and value3 columns back to rows.

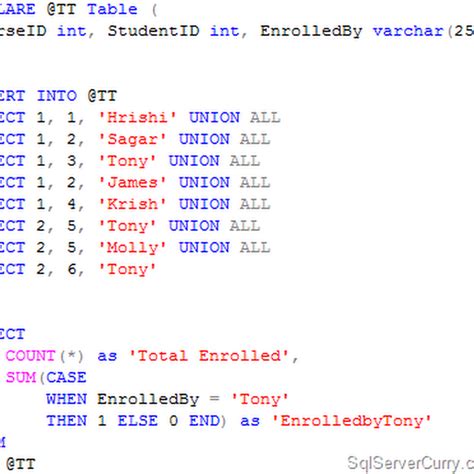

3. Using Conditional Aggregation

Conditional aggregation is a technique used to aggregate data based on certain conditions. This technique can be used to create pivot tables in SQL without using the PIVOT keyword. The basic syntax for creating a pivot table using conditional aggregation is as follows:

SELECT
  column1,
  SUM(CASE WHEN column2 = 'value1' THEN value ELSE 0 END) AS value1,
  SUM(CASE WHEN column2 = 'value2' THEN value ELSE 0 END) AS value2,
  SUM(CASE WHEN column2 = 'value3' THEN value ELSE 0 END) AS value3
FROM table_name
GROUP BY column1;

In this example, conditional aggregation is used to aggregate the values in the value column based on the values in the column2 column.

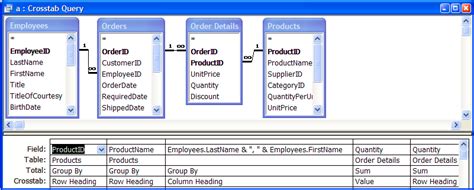

4. Using Crosstab Queries

Crosstab queries are a type of query that can be used to create pivot tables in SQL. A crosstab query is a query that uses a combination of CASE statements and aggregate functions to create a pivot table. The basic syntax for creating a pivot table using a crosstab query is as follows:

SELECT
  column1,
  SUM(CASE WHEN column2 = 'value1' THEN value ELSE 0 END) AS value1,
  SUM(CASE WHEN column2 = 'value2' THEN value ELSE 0 END) AS value2,
  SUM(CASE WHEN column2 = 'value3' THEN value ELSE 0 END) AS value3
FROM table_name
GROUP BY column1;

In this example, a crosstab query is used to create a pivot table that aggregates the values in the value column based on the values in the column2 column.

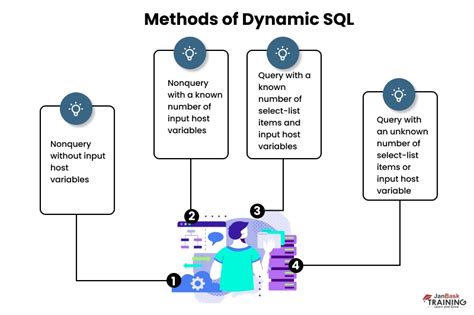

5. Using Dynamic SQL

Dynamic SQL is a technique used to create SQL queries dynamically based on user input. This technique can be used to create pivot tables in SQL where the number of columns is unknown. The basic syntax for creating a pivot table using dynamic SQL is as follows:

DECLARE @sql NVARCHAR(MAX);
DECLARE @pivotList NVARCHAR(MAX);

SELECT @pivotList = STUFF((SELECT DISTINCT ',' + QUOTENAME(column2)
FROM table_name
FOR XML PATH(''), TYPE).value('.', 'NVARCHAR(MAX)'), 1, 1, '');

SET @sql = N'
  SELECT *
  FROM (
    SELECT column1, column2, value
    FROM table_name
  ) AS source_table
  PIVOT (
    SUM(value)
    FOR column2 IN (' + @pivotList + ')
  ) AS pivot_table;
';

EXEC sp_executesql @sql;

In this example, dynamic SQL is used to create a pivot table where the number of columns is unknown.

In conclusion, mastering pivot tables in SQL requires a combination of techniques, including using the PIVOT keyword, conditional aggregation, crosstab queries, and dynamic SQL. By understanding these techniques, database administrators and analysts can efficiently summarize and analyze large datasets to gain new insights.

We hope you found this article helpful. If you have any questions or need further clarification on any of the techniques discussed, please don't hesitate to ask. Share your thoughts and experiences with pivot tables in SQL in the comments section below.

What is a pivot table in SQL?

+

A pivot table in SQL is a data summarization tool that allows users to rotate and aggregate data from a table.

What is the difference between the PIVOT and UNPIVOT keywords in SQL?

+

The PIVOT keyword is used to rotate data from rows to columns, while the UNPIVOT keyword is used to reverse the pivot operation and transform data from columns back to rows.

What is conditional aggregation in SQL?

+

Conditional aggregation is a technique used to aggregate data based on certain conditions. It can be used to create pivot tables in SQL without using the PIVOT keyword.
